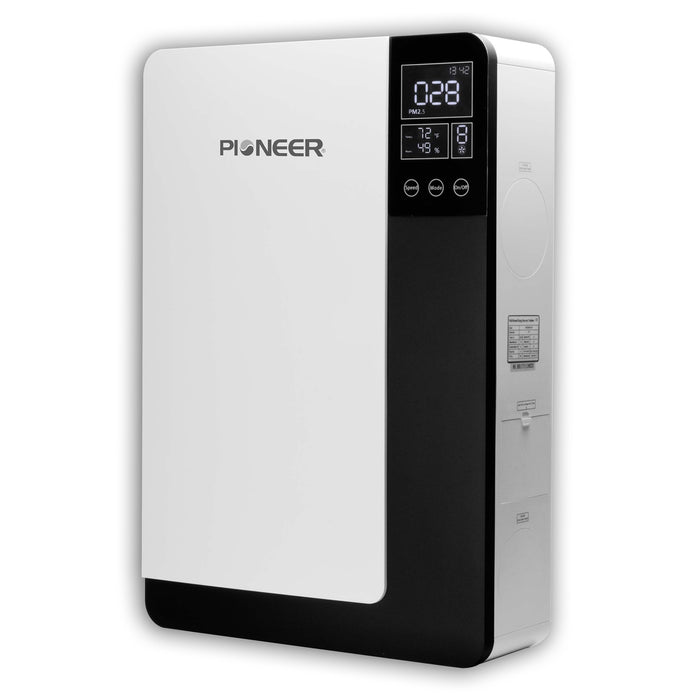

Pioneer® ECOasis 150 Ductless Wall-Mounted Single-Room Wi-Fi Energy Recovery Ventilator

Summary

Elevate your home's air quality with the innovative Pioneer® ECOasis 150 Ductless Energy Recovery Ventilator. Designed to address the most demanding indoor air quality needs, this cutting-edge system incorporates a PM2.5 sensor, comprehensive air filtration, and an 82% efficiency heat exchanger to deliver a remarkable 99% purification efficiency. The ECOasis 150 is your solution for maintaining a healthy, comfortable indoor environment, equipped with built-in WiFi and a user-friendly touch screen panel for effortless control and monitoring. This versatile and efficient unit is ideal for room sizes ranging from 200 to 500 square feet, ensuring optimal air quality in your living space.

Key Features:

• PM2.5 Indoor Air Quality Monitoring: Integrated PM2.5 sensor to continuously assess and control indoor air quality, complemented by temperature and humidity sensors.

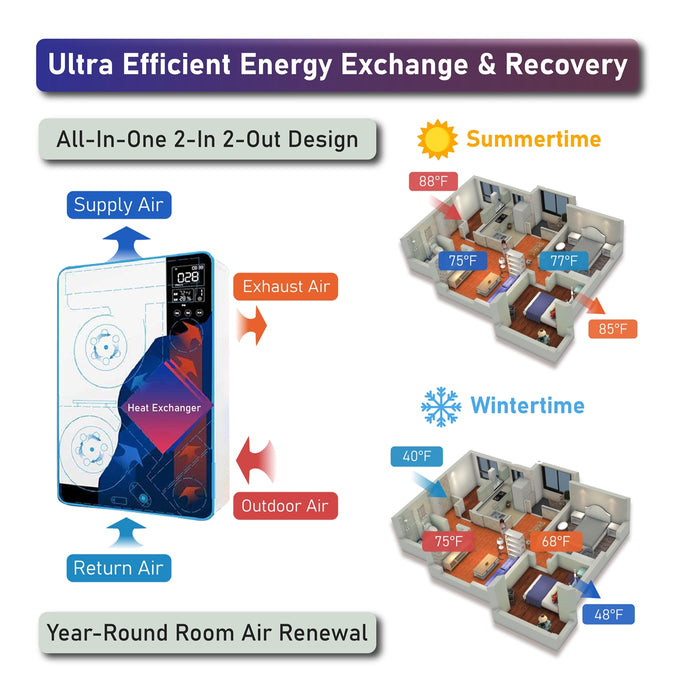

• High Efficiency & Purification: Boasts an 82% efficiency heat exchanger alongside a 99% air purification efficiency, utilizing advanced PM2.5 control and Indoor Air Quality (IAQ) monitor.
• Connectivity and Control: Built-in WiFi for easy remote management through a smartphone app, alongside a touch screen panel and wireless remote controller for comprehensive control options.

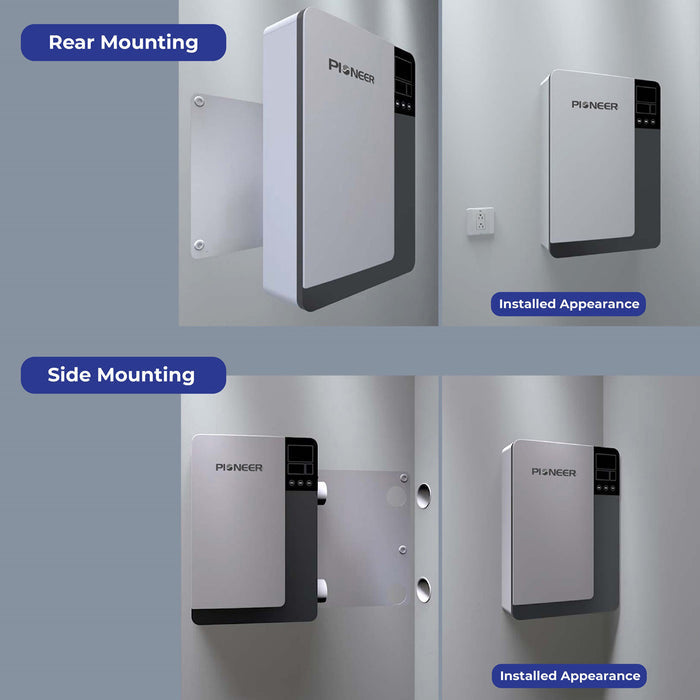

• Flexible Installation: Wall mountable with options for side or rear connection, accommodating various room layouts and designs.

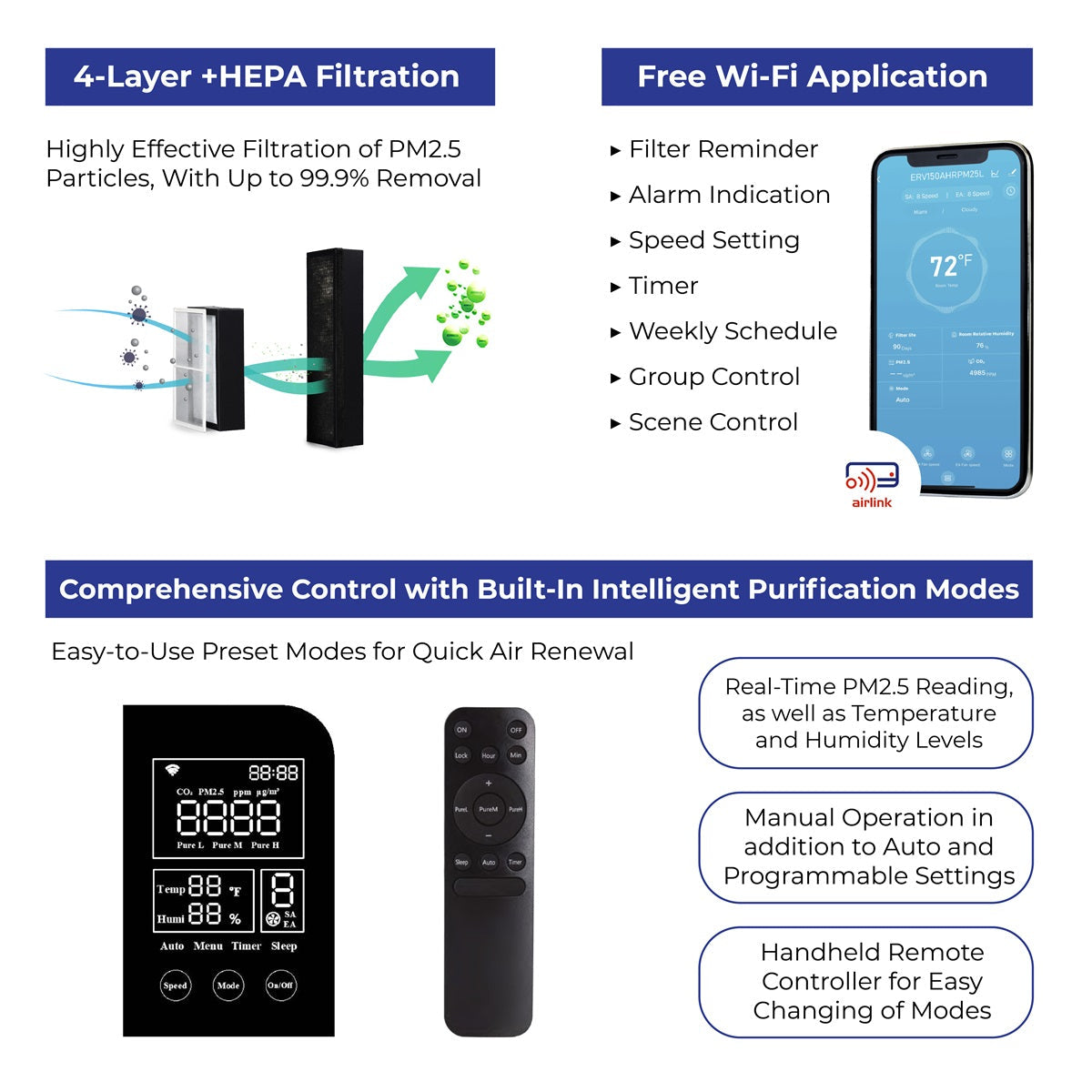

• Enhanced Filtration System: Includes four filters (OA Primary, RA Primary, PM2.5 filter, and Activated Charcoal Hepa H10 filter) to comprehensively remove contaminants and ensure fresh air delivery.
• Quiet and Powerful Operation: Ultra-low sound levels ranging from 23 to 37.9 dB(A) with an 8-speed fan, capable of delivering up to 88 CFM of airflow for effective room coverage.
• Energy Efficient: Low power consumption with only 35W input power, making it an eco-friendly choice for your home.

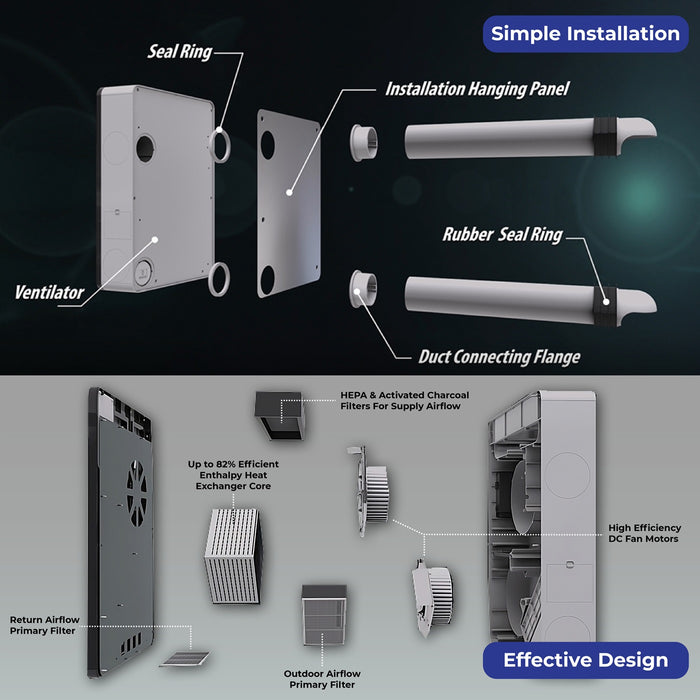

• Design and Maintenance: Features an award-winning, compact, and slim casing for aesthetic integration into any room, with easy installation and maintenance procedures.

Specifications and Product Details:

• • • Power Supply: 110/120VAC
    • Dimensions (WDH): 17-3/4 x 6-1/8 x 26 (inches)
    • Airflow: Up to 88 CFM
    • Method of Control: Touch Screen Panel, Handheld Remote, Smartphone App
    • Product Weight: 22 lbs
    • Input Power: 35W
    • Sound Level: 23-37.9 dB(A)
    • Room Size Suitability: 200 to 500 SqF
    • Filters: OA Primary, RA Primary, PM2.5, Activated Charcoal HEPA (H10)
    • Suggested Room Size Per Unit: 200 - 500 Sq.Ft.
    • Ambient Temperature Operating Range: 5°F - 104°F

Special Features:

• Slight positive pressure ventilation with a 60/40 outdoor air to recirculated air mixture ensures a constant supply of fresh air.
• CO2 sensor for automated adjustment of ventilation based on indoor CO2 levels.

Breathe easier and enjoy a healthier indoor environment with the Pioneer® ECOasis 150 Ductless Energy Recovery Ventilator. Perfect for modern homes looking to enhance air quality while maintaining energy efficiency and quiet operation.

Documentation:

• Sales Brochure
• User's Manual
