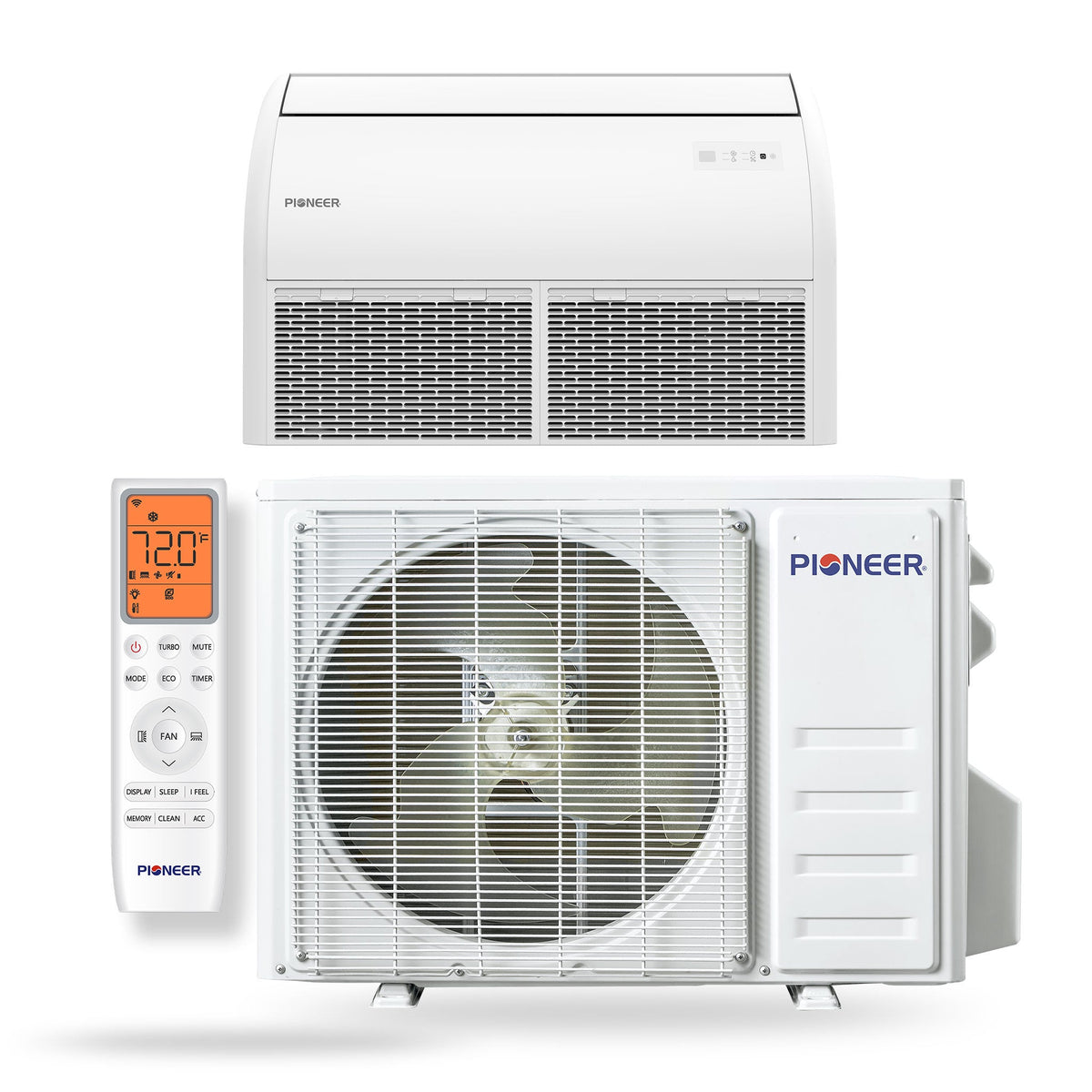

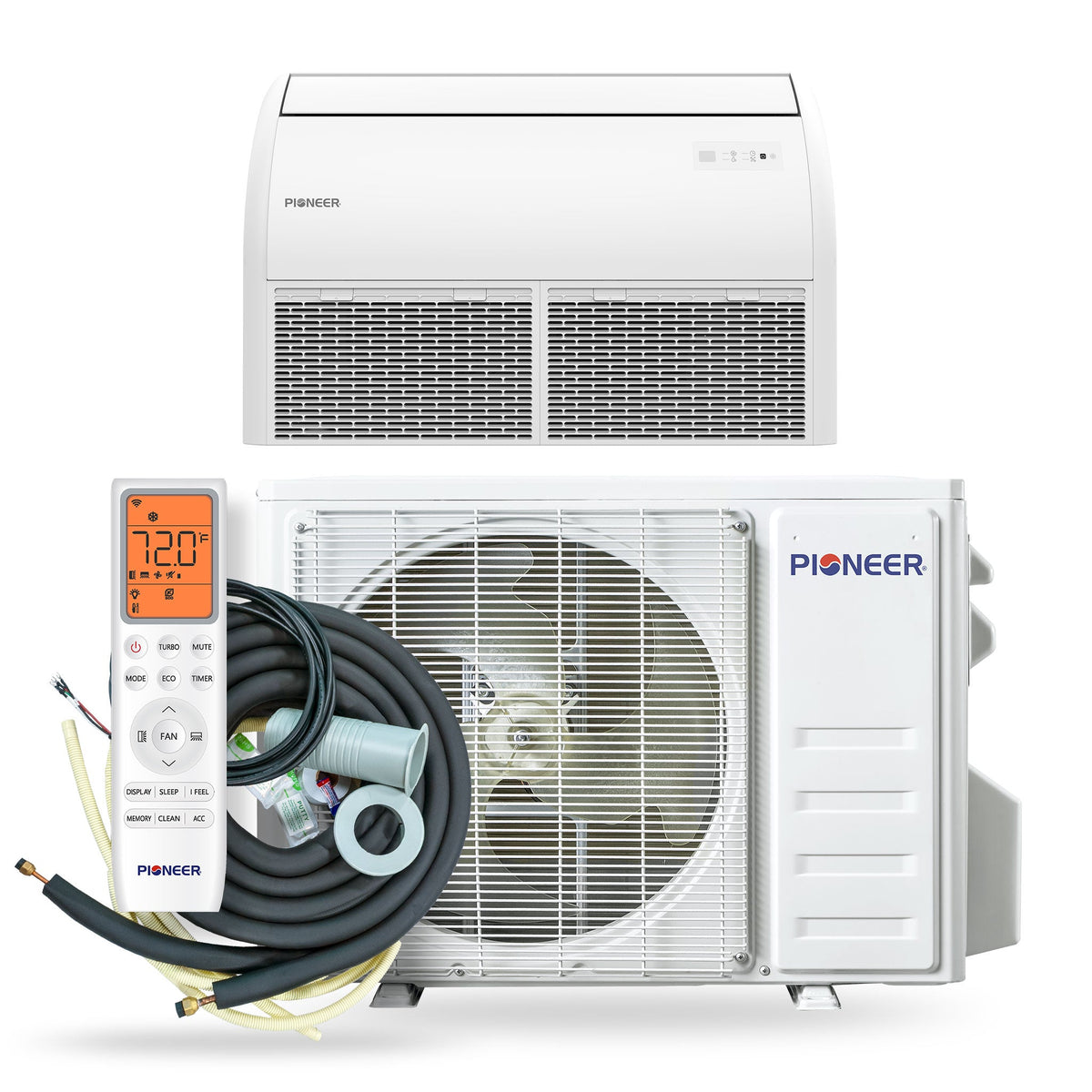

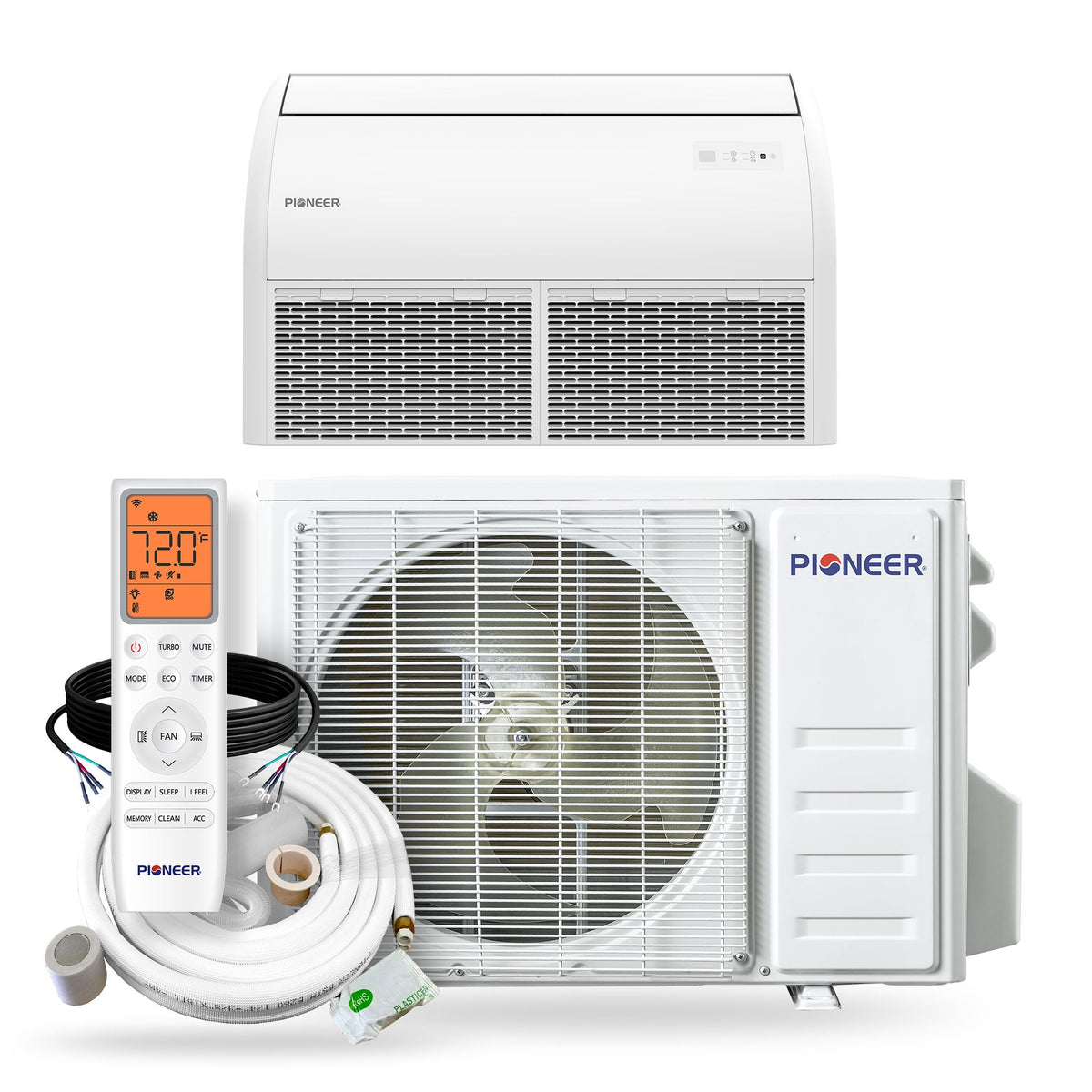

Pioneer® Quantum Ultra™ 18,000 BTU 20.5 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® Quantum Ultra™ 18,000 BTU 20.5 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Regular price
$1,813.00 USD
Regular price
$2,589.00 USD
Sale price
$1,813.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Summary
- High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 20.5 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 9.0 HSPF2 / 2.8 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

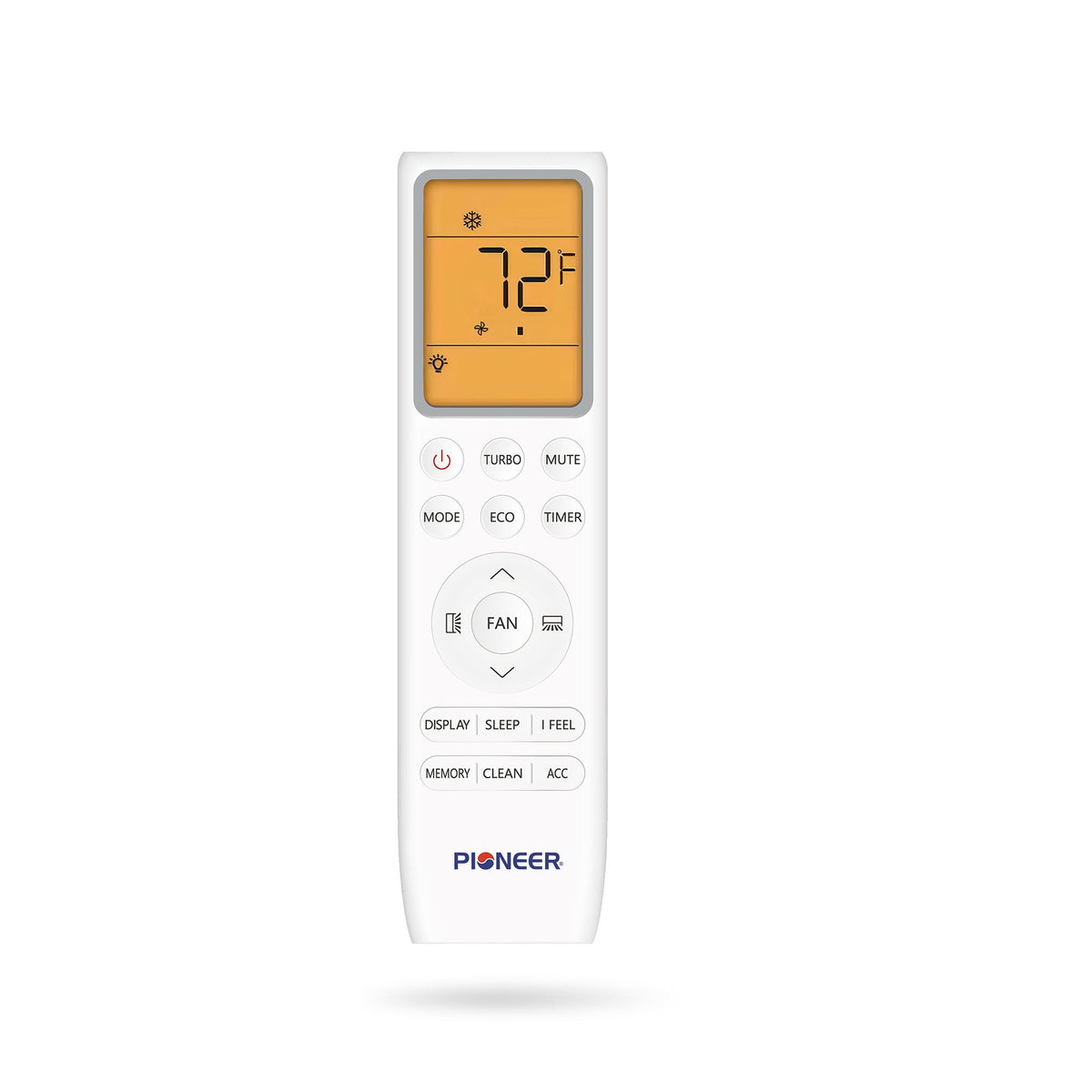

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 4,550~20,200 BTU/h
- Cooling SEER2: 20.5 BTU/W.h
- Cooling EER2: 11.7 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 2,910~22,840 BTU/h
- Heating HSPF2 (Region IV/V): 9.0 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.8 / 1.85 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 500~750 sq ft
-
Minimum Room Size (Ceiling Suspended): 51 sq ft
- Minimum Room Size (Floor/Low Wall): 195 sq ft

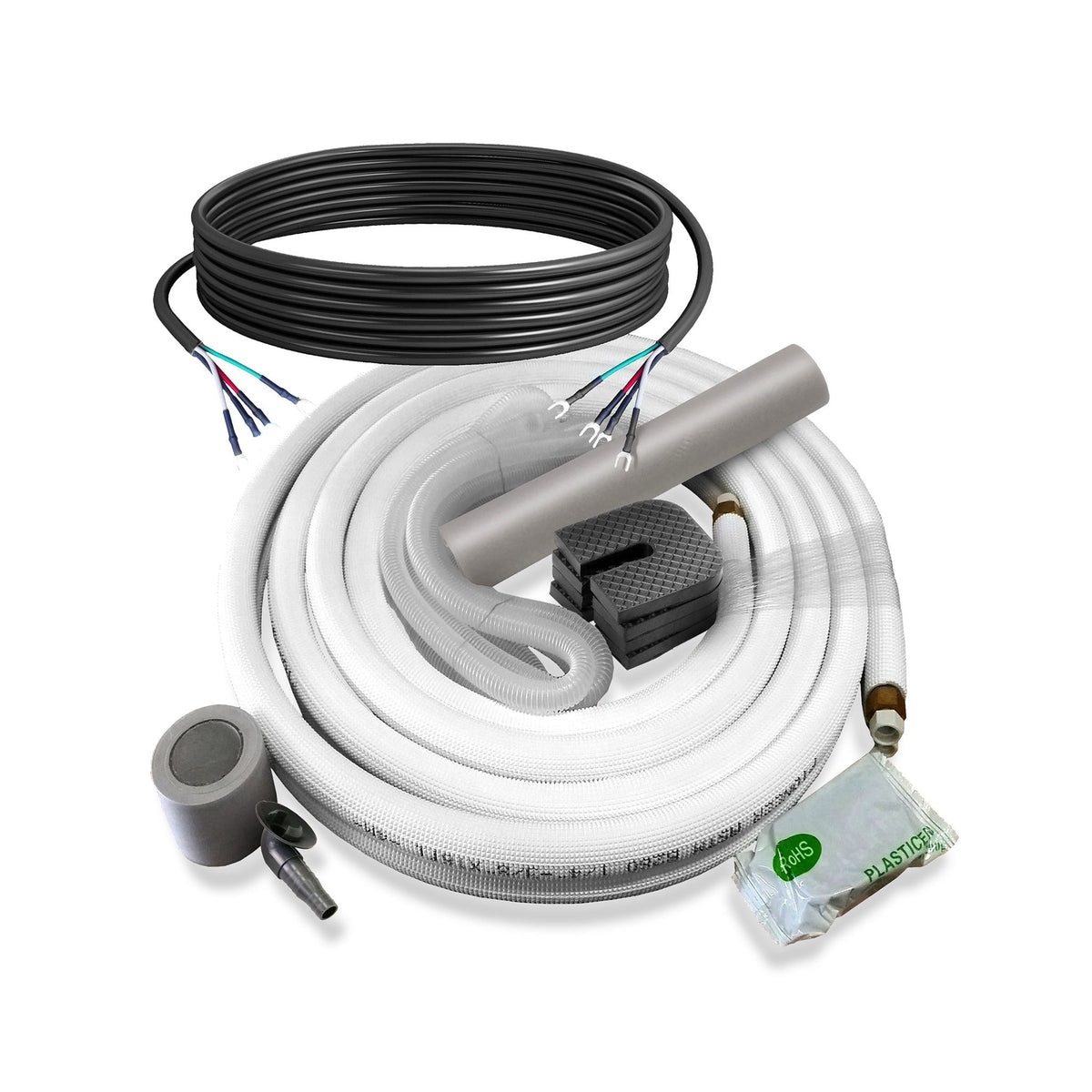

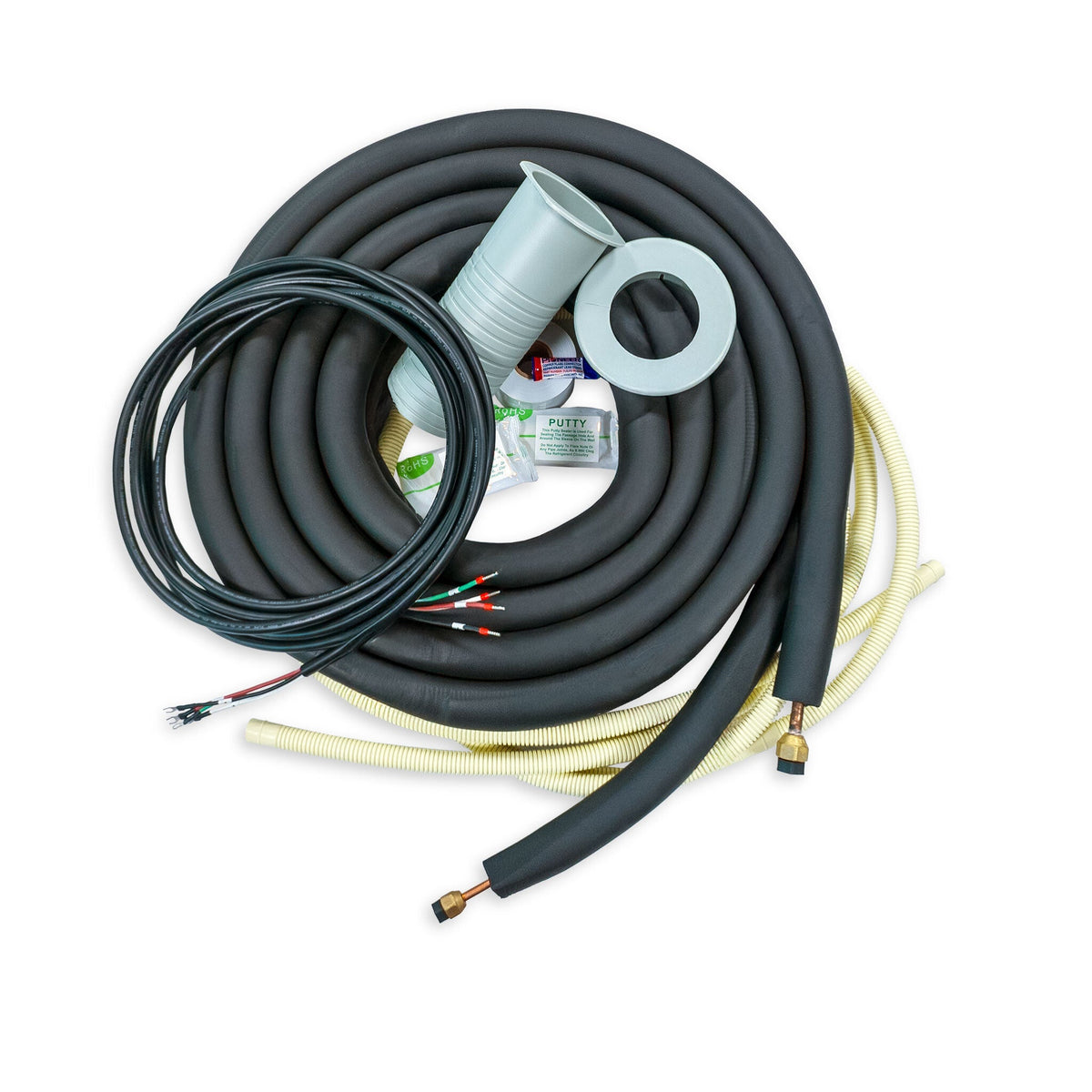

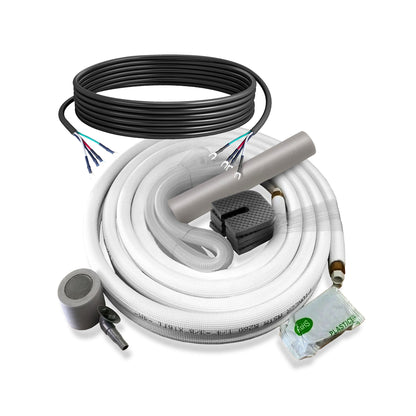

- Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
- AHRI Reference: 217048766
-

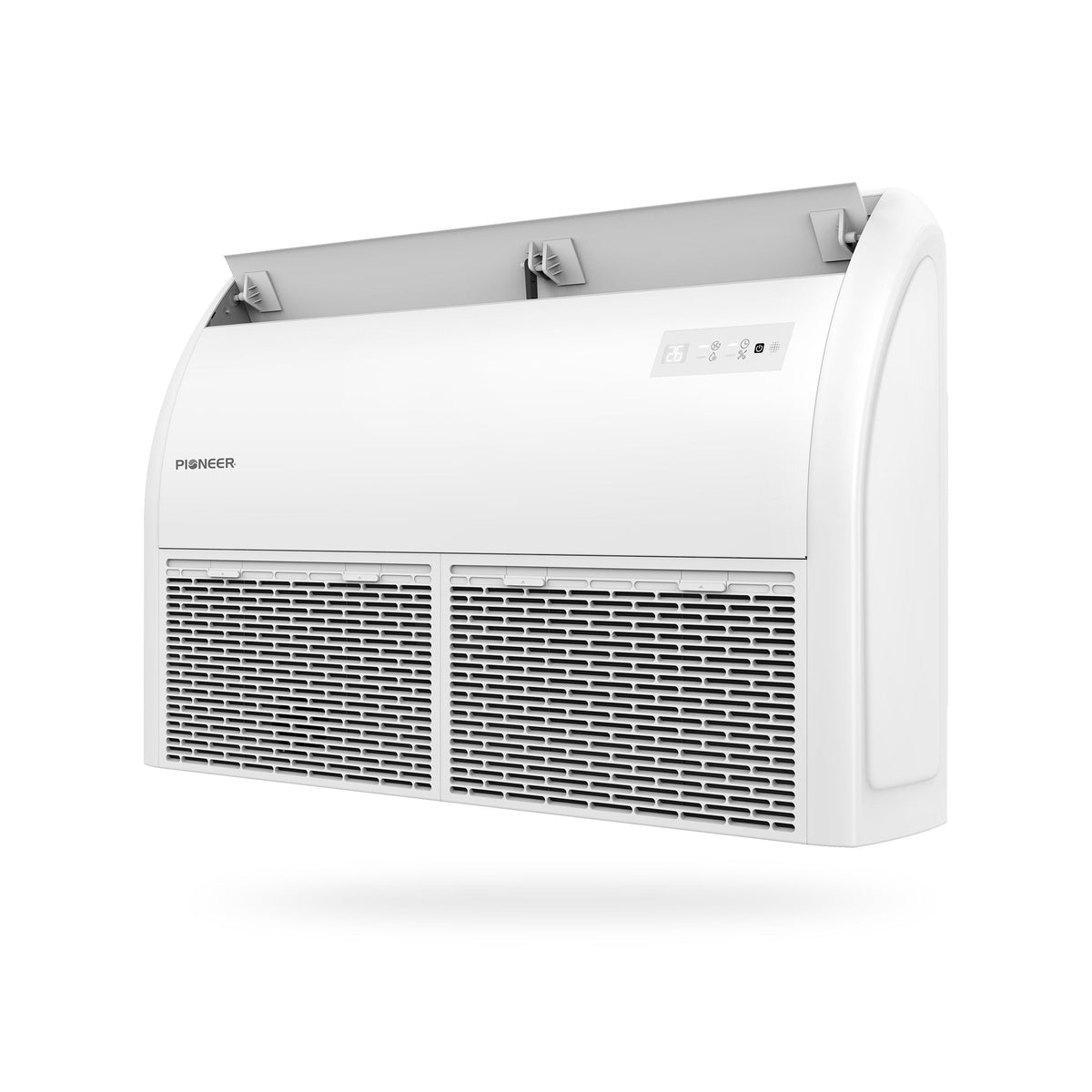

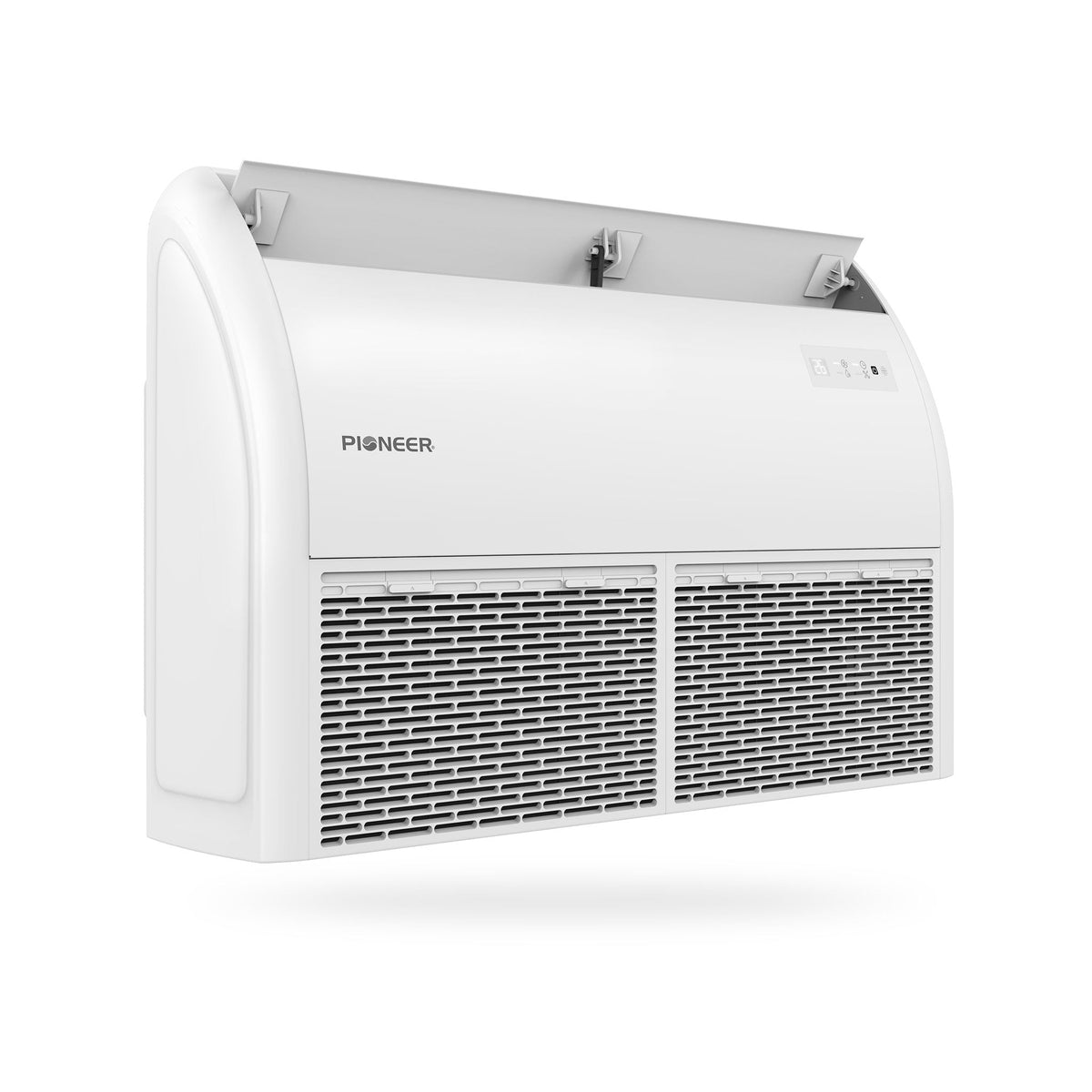

Indoor Unit
- Part Number: UT018GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 588 / 512 / 453 / 353 / 265 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 46 / 44 / 40 / 36 dB(A)
- Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
- Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
- Net / Gross Weight: 52.9 / 63.9 lbs
-

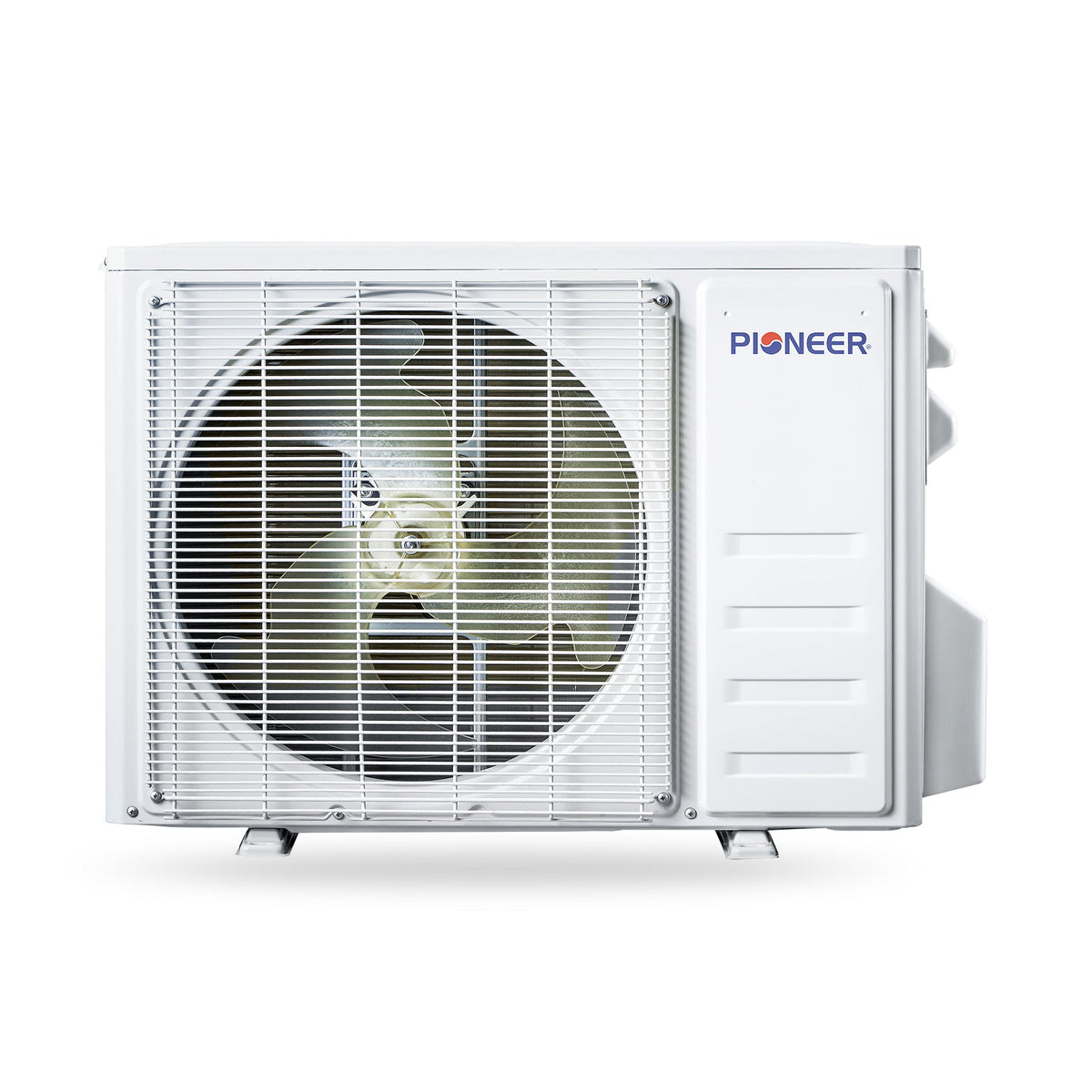

Outdoor Unit
- Part Number: YN018GLSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
- Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
- Net / Gross Weight: 90.4 / 97.0 lbs
